Glass Fibre Bag Filters

Bag-glass 50 (Galvanized)

BAG-GLASS filters are made of fiber glass bags. The combination of fine and coarse woven glass fibers guarantees a low initial pressure drop and an excellent dust-collecting capacity in HVAC systems such as: Air conditioning units, ventilation chambers, etc.), air conditioning systems (office buildings, call centers, department stores, hospitals, museums and airports), industrial processes, (pharmaceutical, food, optical industries, etc.) and as a pre-filter for Hepa and Ulpa Filters.

Technical features

Type: High-efficiency bag filter.
Frame: Galvanized Steel.
Media: Fiberglass fabric.
Bags: Conical shape.
Average Efficiency: 40 ≤ Em < 60%.
EN 779 Class: M5.
ISO 16890: ePM10 65%.
Recommended Final Pressure Drop: 300 Pa.
Temperature: 90ºC.

Advantages

– Conical Shape.

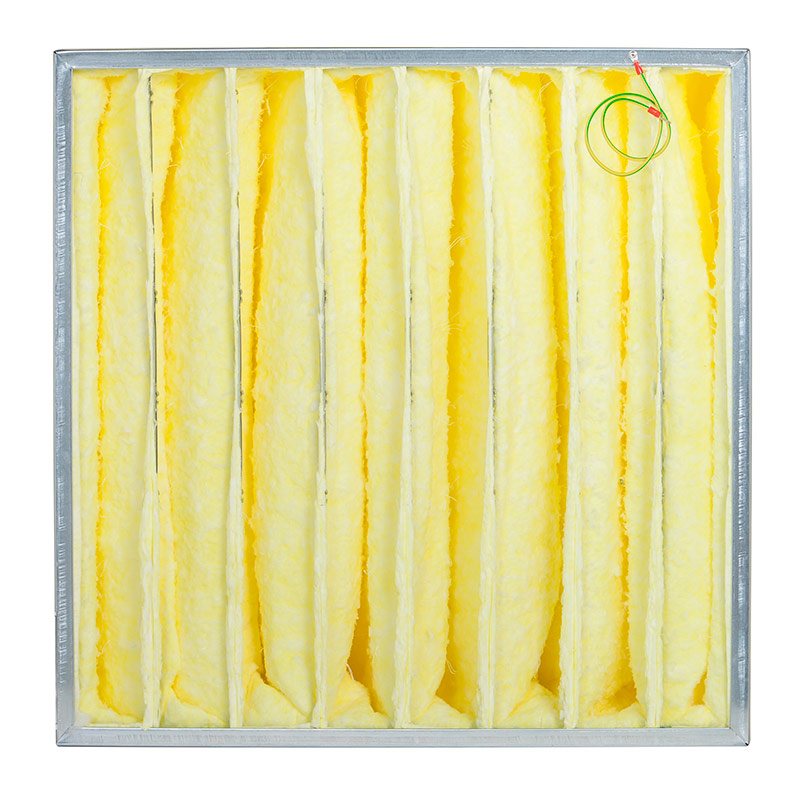

– Available in ATEX.
