Compact pocket filters

Multiven ES (SAVE ENERGY)

Multiven SAVE ENERGY features highly-efficient filtration with extremely LOW ENERGY CONSUMPTION A+. Air conditioning systems (Hospitals, laboratories, museums, aiports, etc.). Industrial processes (pharmaceutical, food, optics, micro-electronics, veterinary services, chemical and surface treatment industries).

Technical features

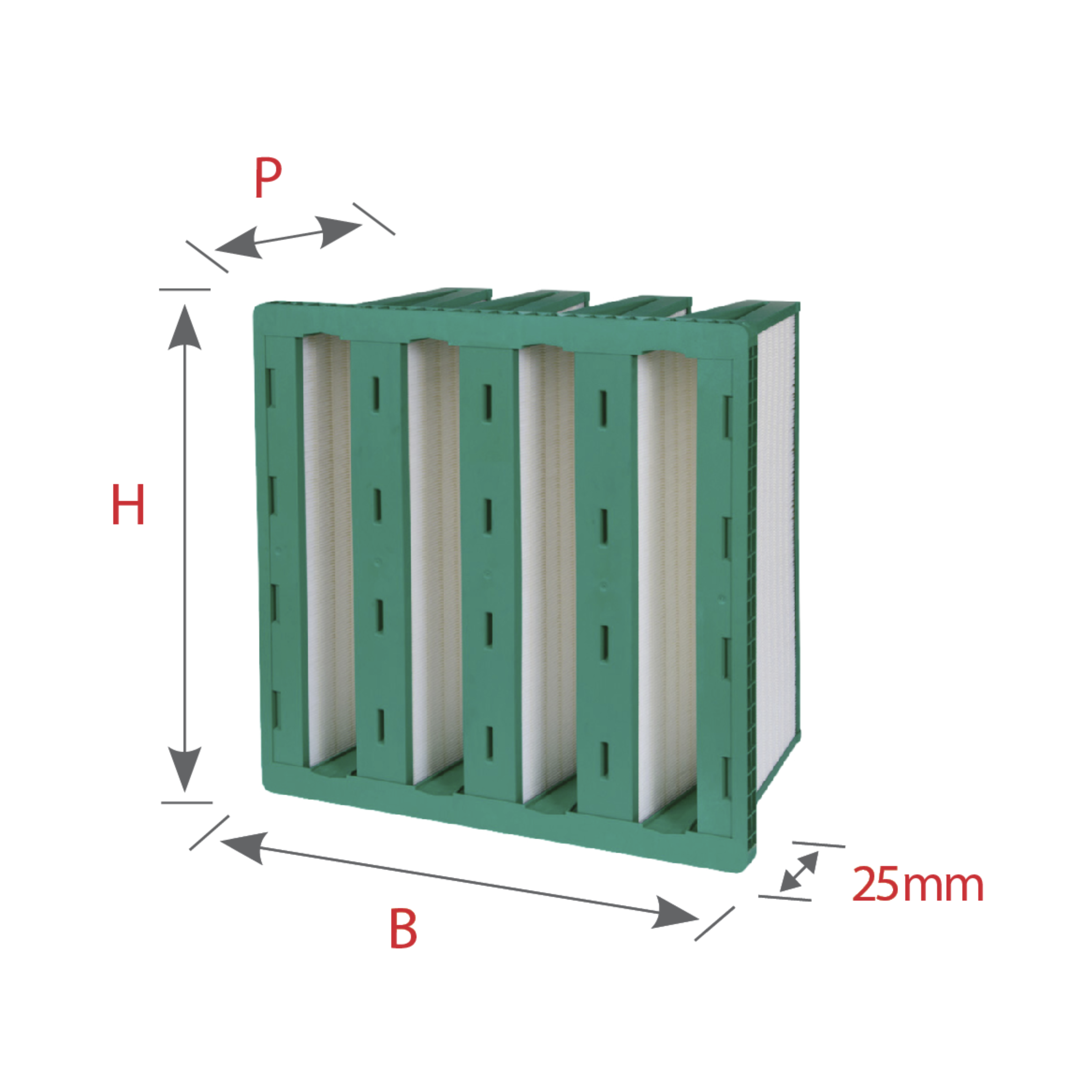

Type: Compact multihedral rigid bag filter.
Frame: ABS.
Filtering Element: Fibreglass sheet.
Separators: Hot melt.
Sealant: Polyurethane.
Average efficiency % (Em): 80% ≤ Em < 90%, 90% ≤ Em < 95% and 95% ≤ Em.
EN 779 Class: F7, F8 and F9.
ISO 16890: ePM1 50%, ePM1 65% and ePM1 80%.
Recommended Final Pressure Drop: 450 Pa.
Temperature: 80ºC continuous service.

Advantages

  • ENERGY SAVING (Extremely Low Energy Consumption A+).
  • LCC (EUROVENT CERTIFICATION) performance certification.
  • Long life cycle (less frequent changes).
  • Rigid construction, facilitating installation. All parts are Corrosion-proof and incinerable.
  • High nominal flow for low pressure loss, pressure drop. Greater filter surface in m2 with respect to bag filters.
  • Water-repellent fibreglass filter media.
  • Extremely high dust-retention capacity.
  • Suitable for the food industry (FOOD SECURE)



Category

Air treatment

Certificates

Graphic

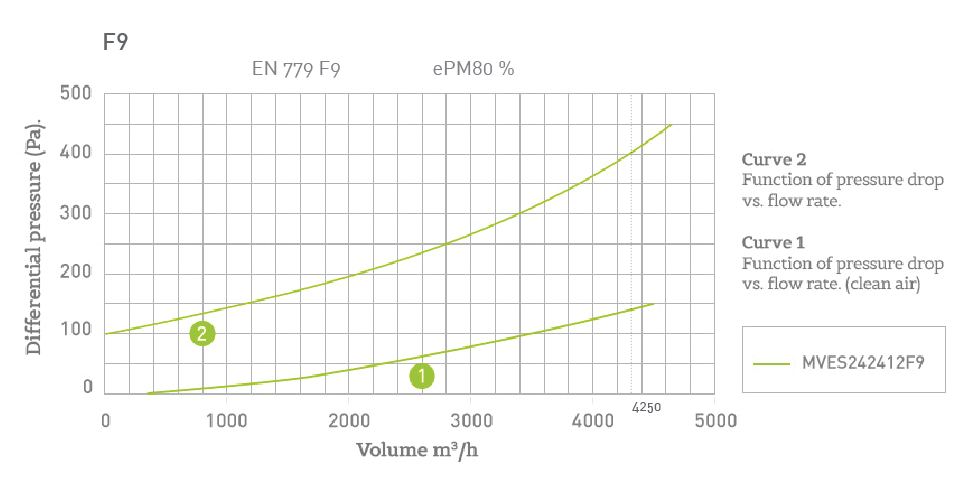

Function of pressure drop vs. flow rate

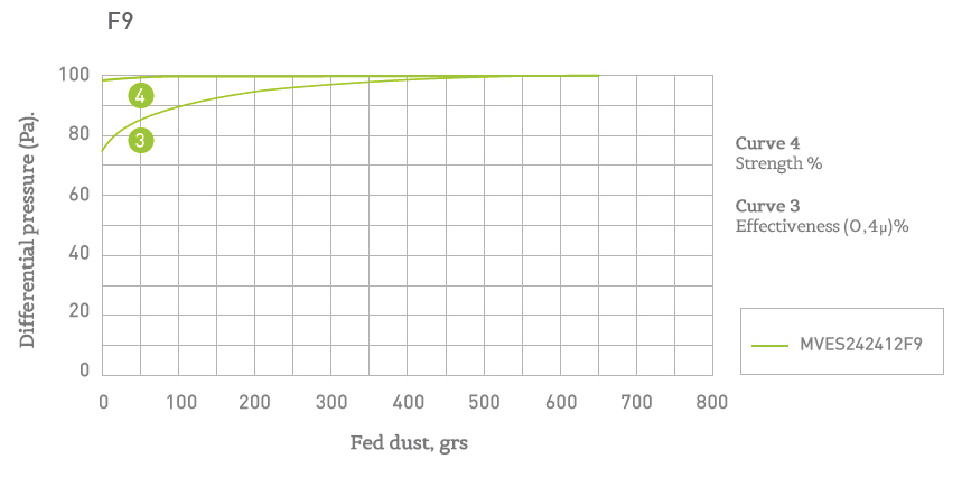

Minimum efficiency test
F8

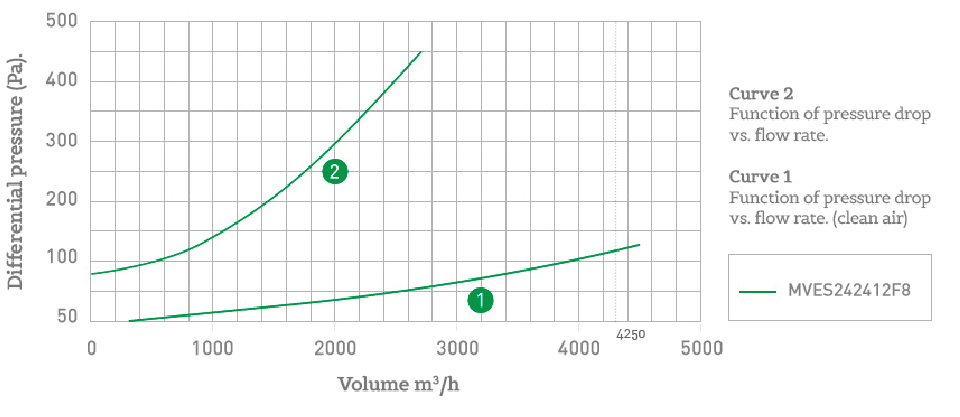

Function of pressure drop vs. flow rate

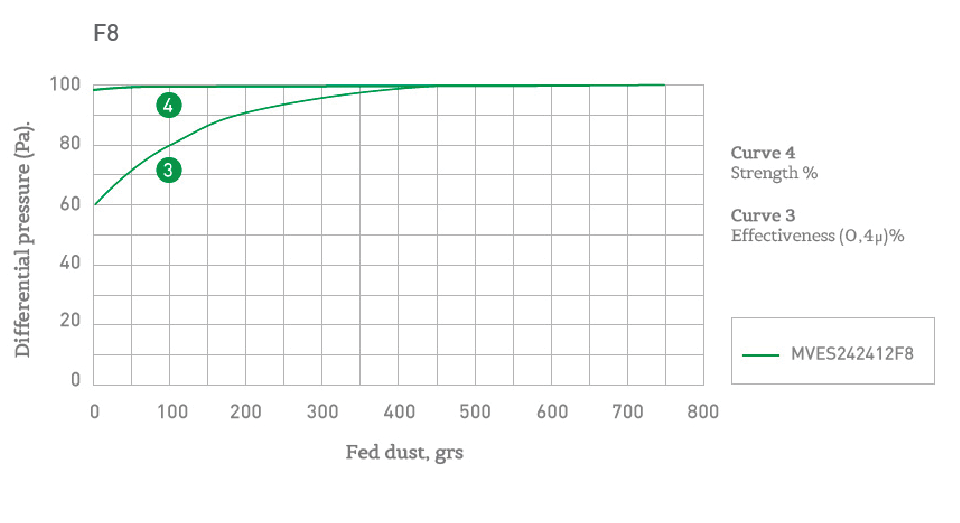

Minimum efficiency test
F7

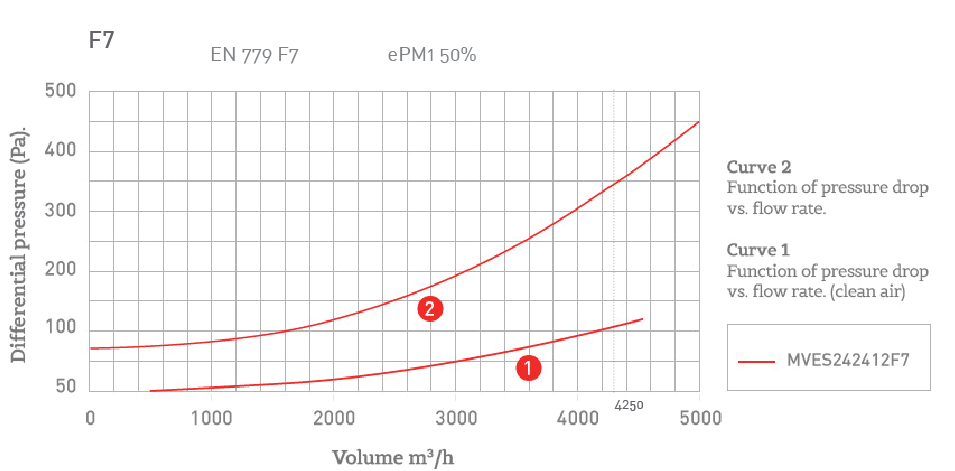

Function of pressure drop vs. flow rate

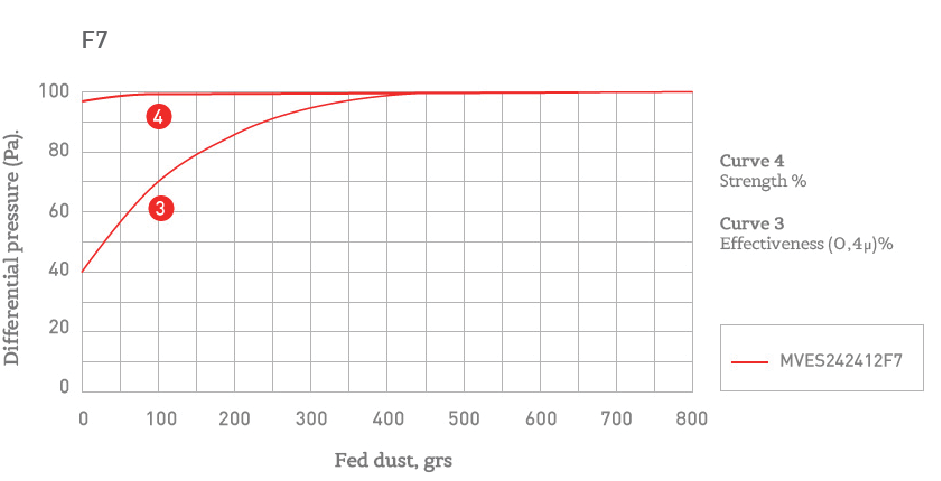

Minimum efficiency test

Multiven ES (SAVE ENERGY)

References

* Energy Consumption kWh / year: Calculated according to Eurovent 4 / 21-2017 guidelines.
** Energy Consumption kWh / year: Calculated according to Eurovent guidelines.
**** Energy class according to Eurovent.

*UxP: Units per box
*Stock: F: Manufacture, S: Stock, SL: Limited Stock
