Hepa diffuser

Metal Housing Side Mouth without regulation

Metal terminal diffuser for replaceable HEPA/ULPA filters, type Laminarven for air diffusion in clean rooms with turbulent and laminar flow.

Technical features

Type: Diffuser terminal unit for ceiling or wall installation for the final filtration of a Clean Room.
Construction: Electro-galvanised steel, welded, airtight, white epoxy paint (RAL 9016) and oven dried.
Air inlet: Circular side (HTMBL) with fixing collar.
Installation: Holes for fastening for easy and quick assembly.
Filter fixing: At the bottom, against the smooth, one-piece frame and fastened with fixings that provide continuous and constant pressure.
For filters: Filters of 66, 78, 90 and 110 mm. depth.

Advantages

– Smooth coating, allows easy cleaning of the diffuser grille.
– Internal centring devices for the filters and fixed fixings for the location of the filter inside the housing, preventing it from falling out.
housing, preventing the filter from falling out.
– Easy assembly or replacement of the filter.
– Easy adaption of different filter fixings.
– New lid fastening system.

INSTALLATION
– Rigid construction design, allowing an easy and quick assembly or installation.
– Installation on the ceiling, side or top entry.
– It is also equipped with four drilled brackets for suspension.

Steel plenum:

Fitted grids:

Fixings for filter attachment:

Probes for integrity test and differential pressure measurement and clamping bracket:

Measurements Filters:

Diffusers and grilles:

Category

Mounting elements

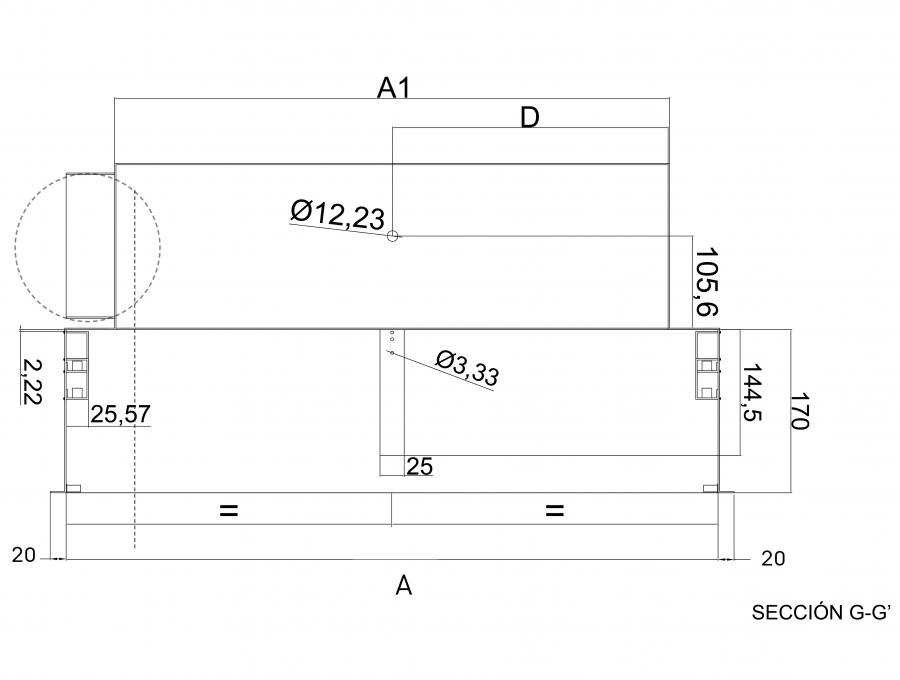

Technical documentation

HTMBLCR- Side air inlet with room control system

Metal Housing Side Mouth without regulation

References

UxP (*): Units per box
Stock: F: Manufacture, S: Stock, SL: Limited Stock
