Laminarven Gel
Terminal filtration in clean rooms and laminar flow cabins.
Flat hepa laminar gel filters
LVG-H14
LVG-U15
![]()
Technical features
Type: Laminar flow HEPA panel.
Frame: Extruded and anodised aluminum profile.
Material: Glass microfiber filter paper.
Separators: Hot melt beads.
Sealant: Polyurethane.
Protective grid: Steel grid on both sides in white epoxy painted.
Gasket: Gel
MPPS Efficiency: 99,995% and 99,9995%
EN 1822 Class: H14 and U15.
Recommended Final Pressure Loss: 600 Pa.
Temperature: 80ºC in continuous service.
Advantages
– The new gel seal prevents the leaks that may occur in neoprene or liquid sealing filters, due to the loss of elasticity of the seal over the time.
– Grid protection on both sides to avoid breakages on the filter surface.
– 100% scanned, in accordance with regulations EN 1822-4.
– DOUBLE LABELLING ATTACHED.
– Suitable food industry.

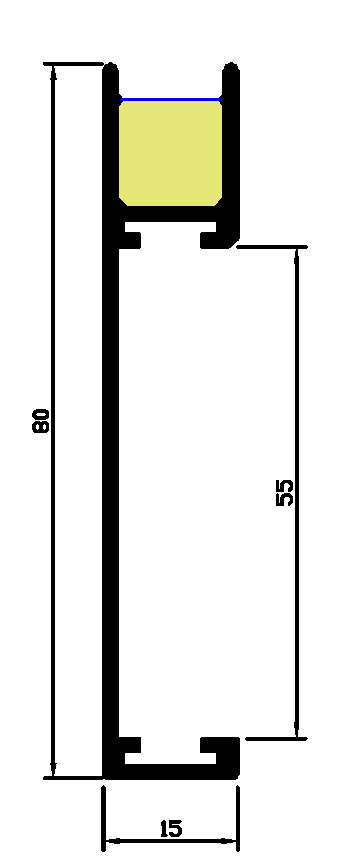

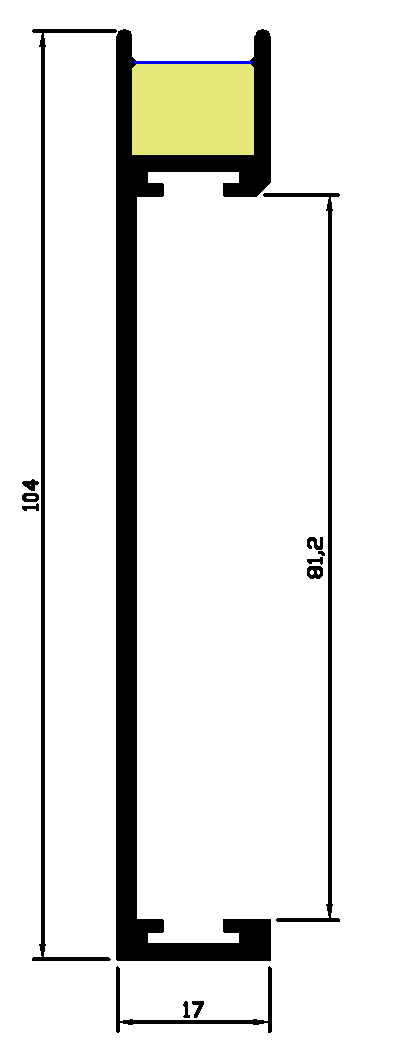

Gel Seal detail
Category
Absolute Filtration / Clean RoomsClass: H and UCertificates
Graphic

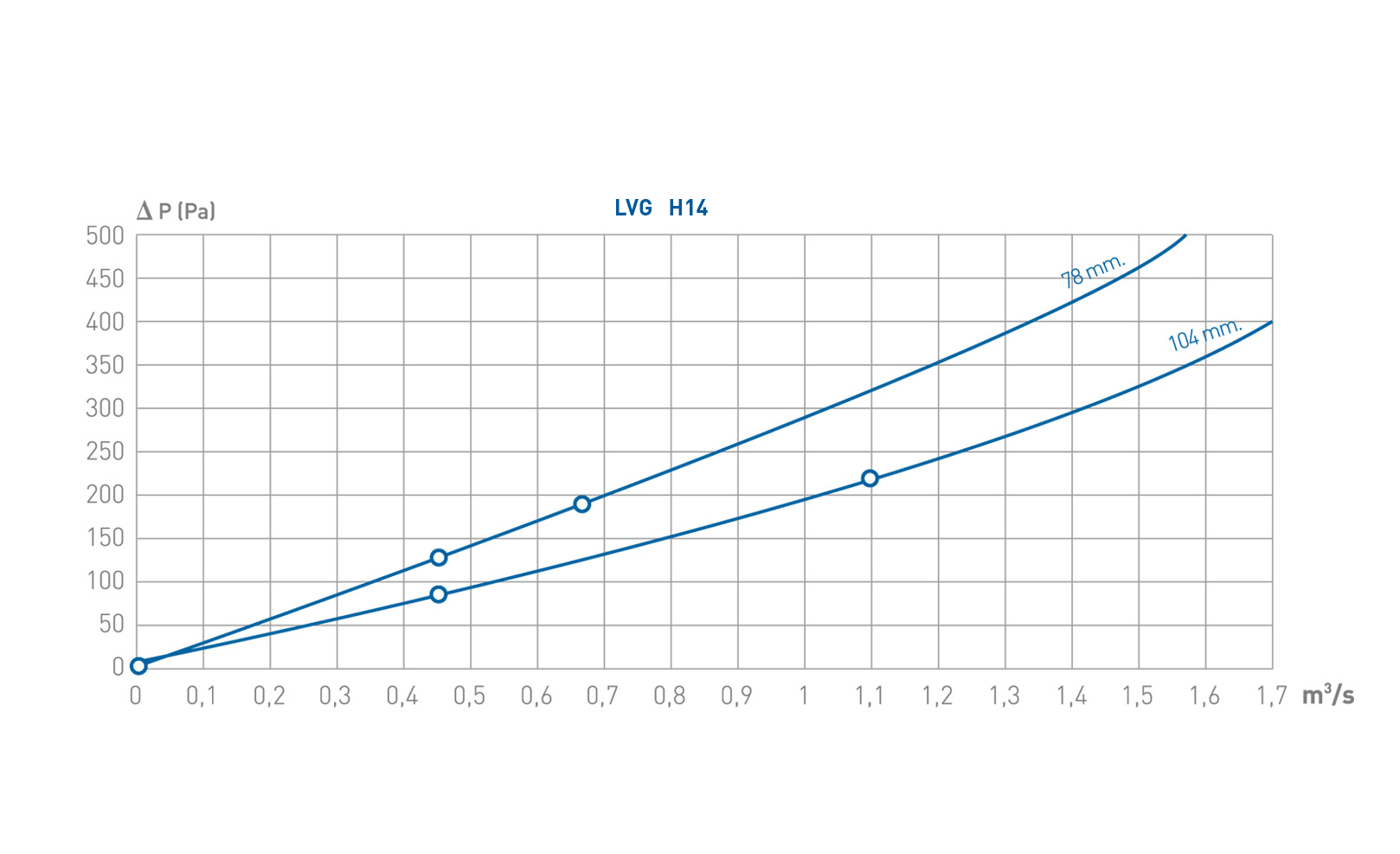

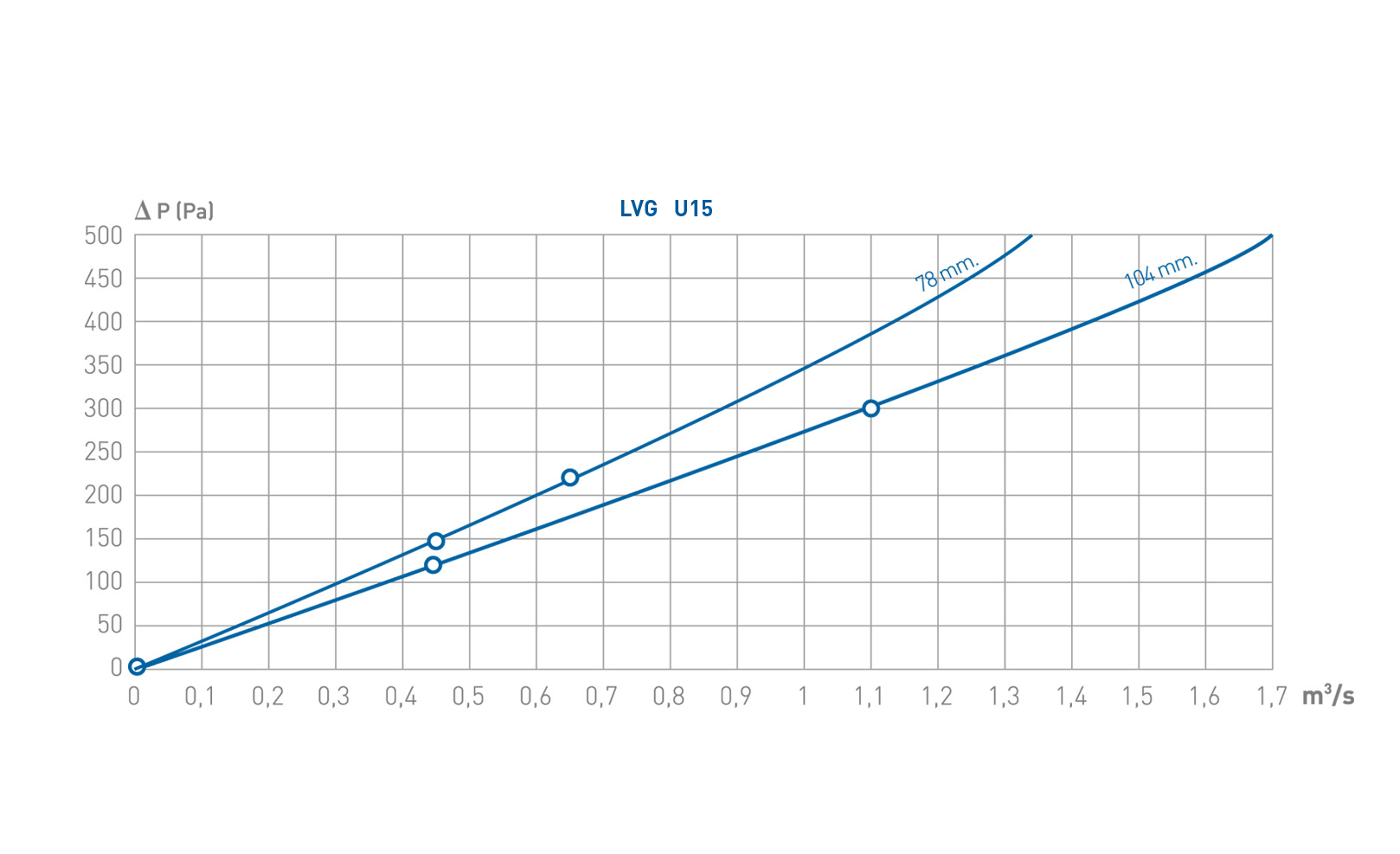

FUNCTION OF PRESSURE DROP VS. FLOW RATE
Laminarven Gel
References
*UxP: Units per box *Stock
F: Manufacture, S: Stock, SL: Limited Stock
