Omega

Omega

Pre-filter to retain coarse particles in the air intake of painting booths and drying.

Technical features

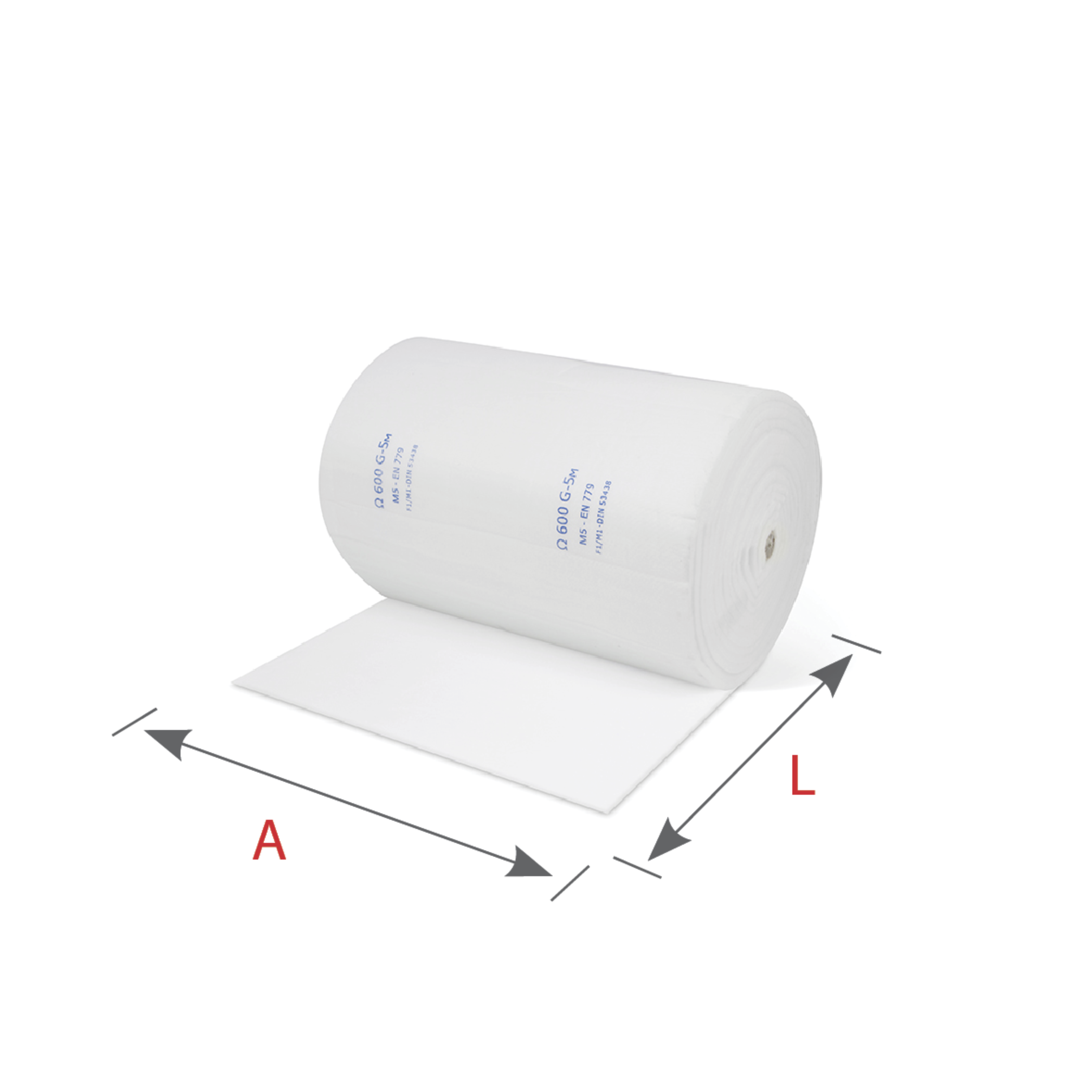

Type: Rolls of Synthetic Material.
Media: This model consist of a mixture of synthetic fibres and includes a multi-layer structure with
progessive density.
Class EN 779: M5.
Recommended final Pressure Drop: M5; 450 Pa.
Temperature: 100-110 ° C maximum continuous service.

Advantages

– Panels cut to length.
– Specific-application adhesive reduces particle migration.
– Mesh on the air outlet ens further ensures dust retention.

Category

Painting booths

Graphic

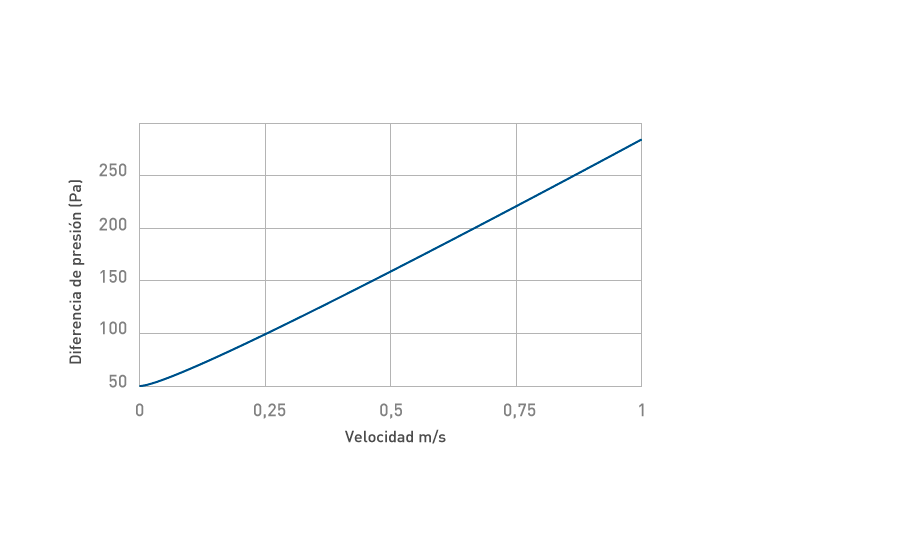

Function of initial pressure drop vs. flow rate
OMEGA 600G-5M
OMEGA 600G-5S

Omega

References

UxP: Units per box
Stock: F: Manufacture, S: Stock, SL: Limited Stock
