Paint-Stop spray booths

Paint Stop/Glass-Oil

The Paint Stop roll is used to retain paint particles and sprayed liquids in the air outlets of painting booths. Glass-Oil roll is used for air treatment in HVAC systems.

Technical features

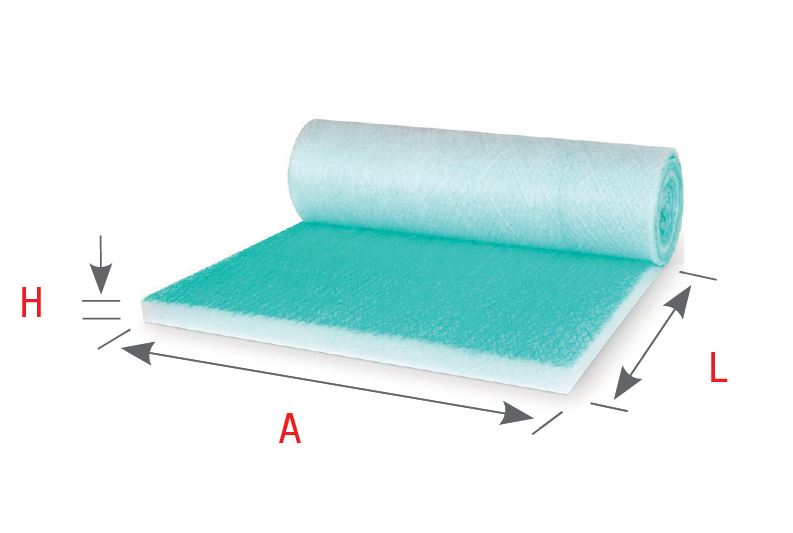

Type: Fibreglass Rolls.
Media: Fibreglass.(Glass-oil impregnated with viscosine)
Class EN 779: G2 and G3.
ISO 16890: Coarse 50%.
Recommended Pressure Drop: 250 Pa.
Temperature: Paint Stop 120ºC, Glass Oil 100ºC.

Advantages

– Disposable panels cut to length.
– fiberglass progressive density filter media.

Category

Painting booths

Graphic

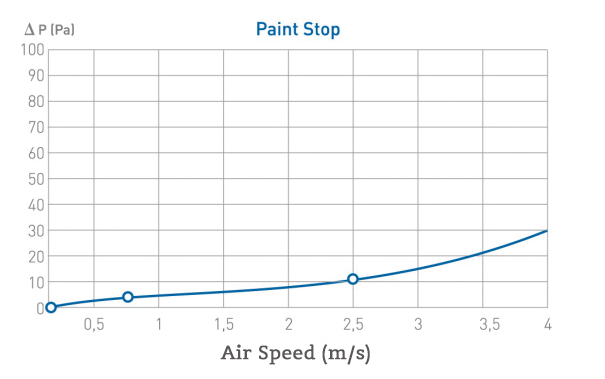

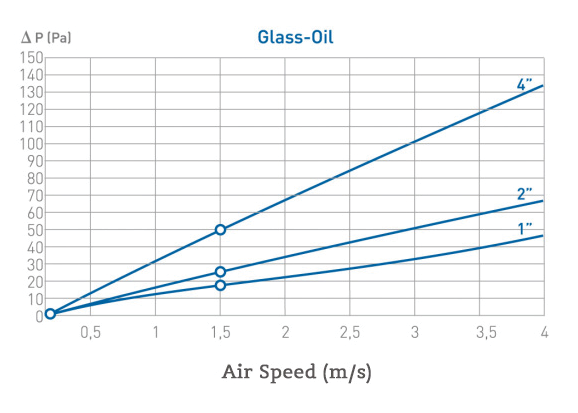

Function of pressure drop vs. flow rate
Paint Stop
Glass-oil

Paint Stop/Glass-Oil

References

*UxP: Units per box
*Stock: F: Manufacture, S: Stock, SL: Limited Stock
