Terminal module

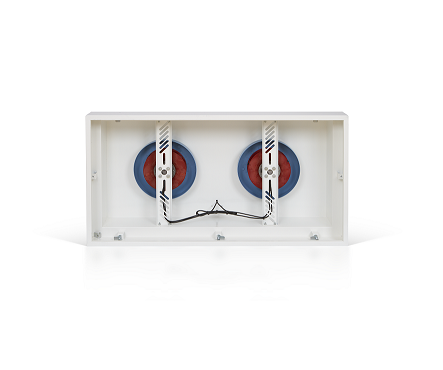

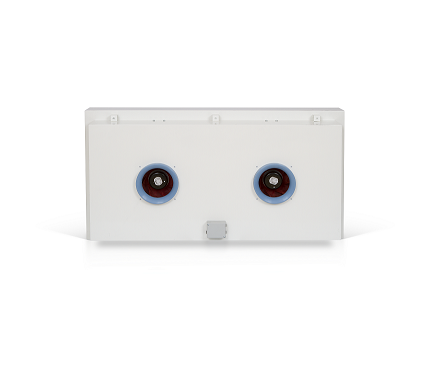

Terminal module Diffuser with built-in fan. This module aspires the air from its plenum or from a clean atmosphere in order to create a localized laminar flow for clean and sterile rooms.
Terminal module Diffuser with built-in fan. This module aspires the air from its plenum or from a clean atmosphere in order to create a localized laminar flow for clean and sterile rooms.
Type: Diffuser Terminal module with built-in fan.
Construction: Airtight welded electrogalvanized steel, white epoxy paint (RAL 9016) oven-dried.
Air inlate: Circular at the top.
Filter attachment: At the bottom part of the single piece smooth frame. The filter is held in place with fasteners that exert a continuous and constant pressure.
Filters: Air ultrafiltration up to U15 class.
Radial fans with backward curved blades.
– External rotor engine protected by thermoforming.
– Statically and dynamically balanced turbine according to VDI 2060 class Q 2.5.
Single phase 230V, 50Hz.
Intensity: 0.67 Amp.
Power: 154 W.
Speed: 2500 r.p.m.
Max. & Delta press.; Pa: 460
ACCESSORIES
Pressure Gauge.- Pre. 1 (Range from 10 to 700 Pa).
Prefilter.
Variator.
Pre-filter support.
– Independent laminar flow. Reduced height.
– Installable in standard roof constructions.
– Interchangeable HEPA or ULPA filter. Ultra-air filtration up to U15 (EN 1822).
– Filter can be removed without altering roof sealing properties. DOP and Pressure Drop connections.
– Variable speed drive.
UxP: Units per box
Stock: F: Manufacture, S: Stock, SL: Limited Stock
