UFA AIR treatment unit
Supply and extract air for Very High Efficiency or absolute HEPA filters.
Gamma VEN AIR
Technical features
Type: UFA series purification units.
Construction: Filter-holder drawer built in 25 mm thick sandwich panel, externally lacquered, aluminum profile chassis and polyamide corner pieces.
Registration: Side (left or right).
Filter fixing: BTRA frame (not included in tariff price)
Installation: Installed at the ends of the air distribution duct or inserted in the ventilation circuit.
For filters: HEPA
Constant flow control: Included as standard
Optional: Prefilter
HEPA Antimicrobial
DIRTY FILTER PROBE
PROBE ASSEMBLY
CONTROL (Mounted and wired)
Control characteristics:
– On / Off
– Fan Speed Control
– Hours of operation programming.
– Control dirty filters by TIMER.
– ModBus connection.
Advantages
– Range with flow rates from 1500 to 14.000m3/h.
– Electronic motors with EC technology for low electric consumption.
– Low noise level
Category
VEN AIR RangeGraphic
Technical documentation
UFA AIR treatment unit

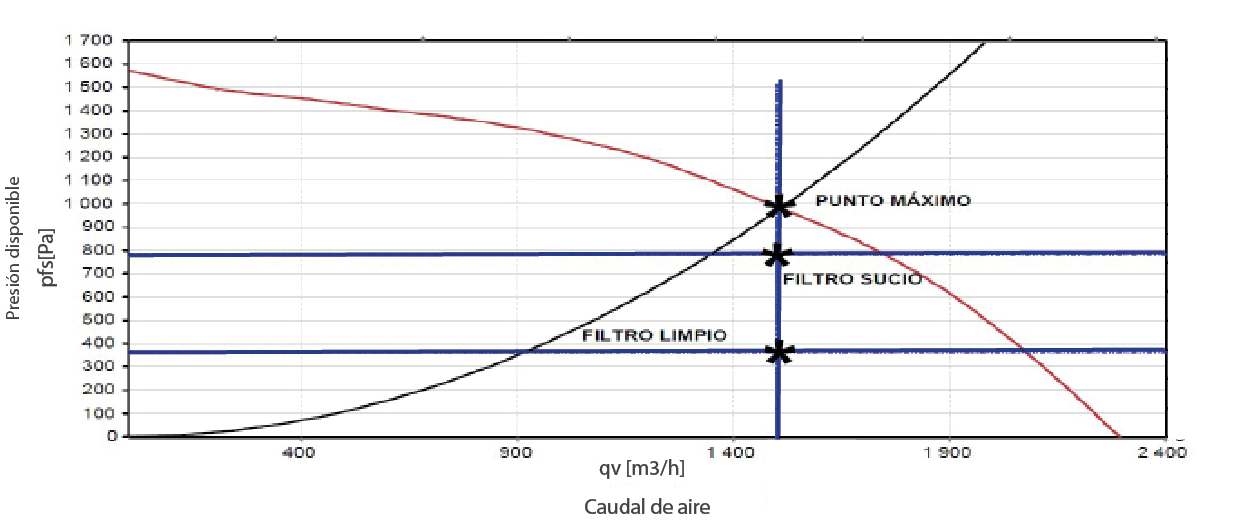

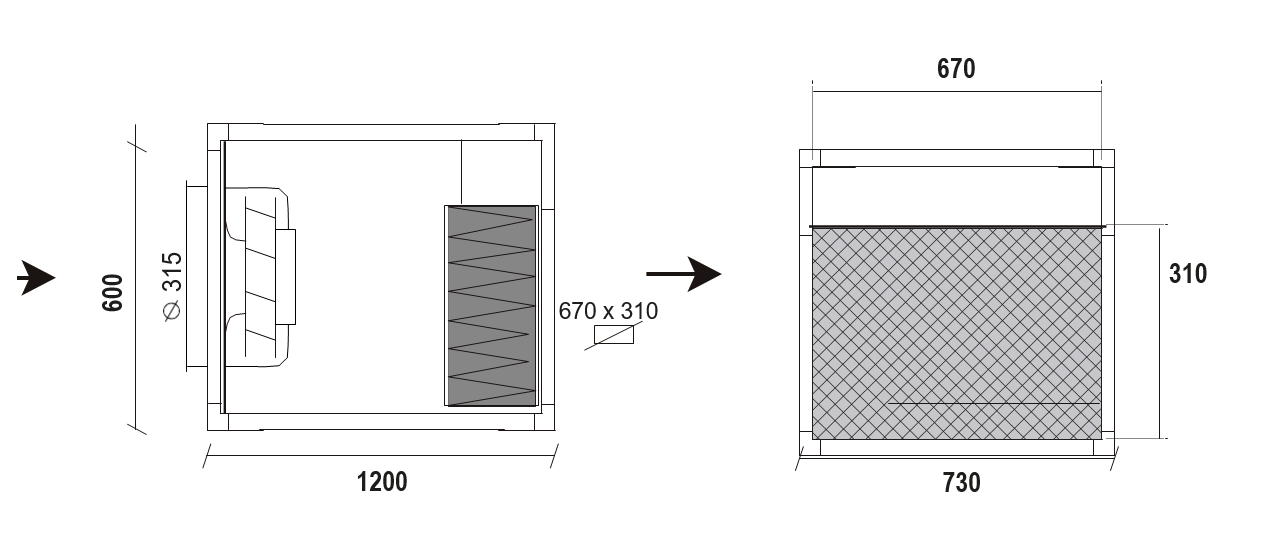

References
| MODEL | POWER | RPM | INTENSITY | VOLTAGE |
|---|---|---|---|---|
| K3G250 RR02 I2 | 750W | 4250 | 3.30 A | 230V/I 50/60Hz |
NOISE LEVELS
Sound pressure (LpA) at 3m in open field, in dB(A) at nominal flow rate and maximum pressure
| 63Hz | 125Hz | 250Hz | 500Hz | 1000Hz | 2000Hz | 4000Hz | 8000Hz | Total |
|---|---|---|---|---|---|---|---|---|
| 48,4 | 52,5 | 53,1 | 57,6 | 56,6 | 55,0 | 51,9 | 49,2 | 61,6 |

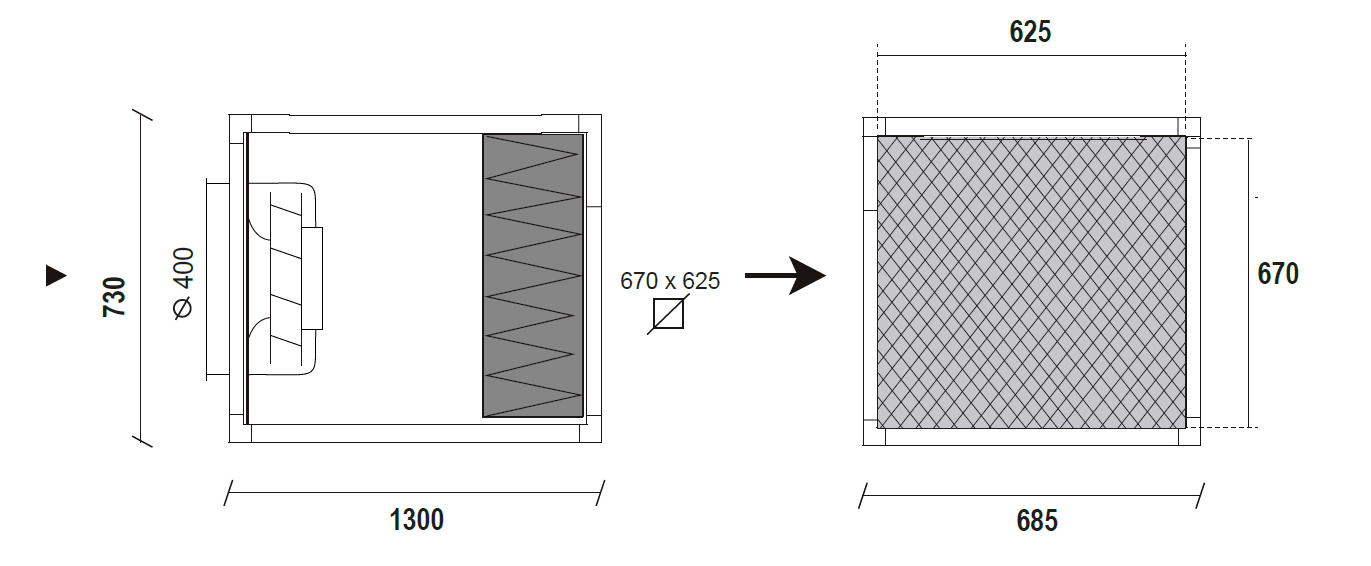

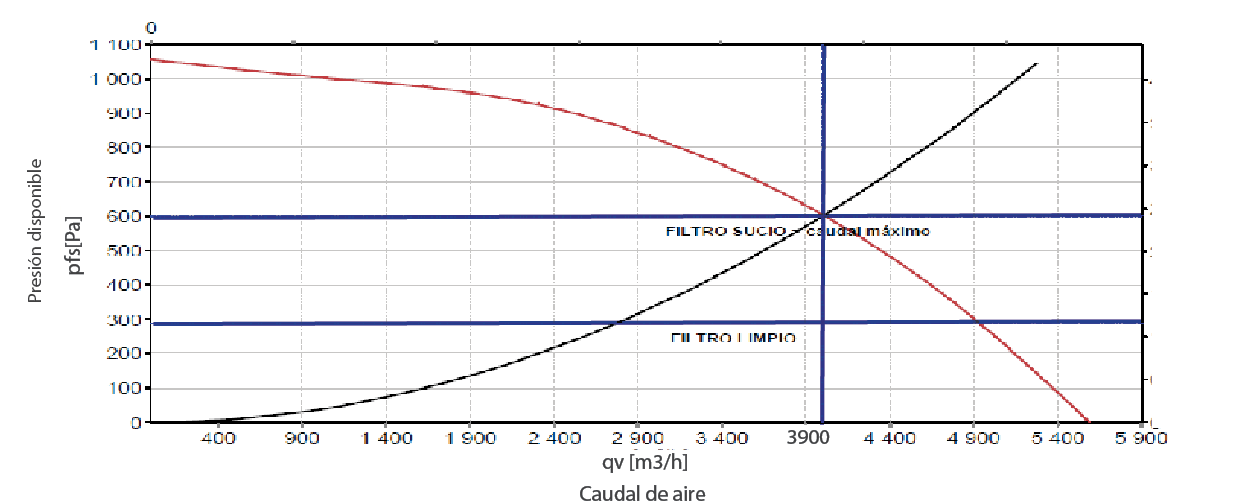

UFA-HEPA-4000
FAN
| MODEL | POWER | RPM | INTENSITY | VOLTAGE |
|---|---|---|---|---|
| K3G355 RJ75 01 | 1100W | 2400 | 1,70 A | 230V/I 50/60Hz |
NOISE LEVELS
Sound pressure (LpA) at 3m in open field, in dB(A) at nominal flow rate and maximum pressure
| 63HZ | 125HZ | 250HZ | 500HZ | 1000HZ | 2000HZ | 4000HZ | 8000HZ | TOTAL |
|---|---|---|---|---|---|---|---|---|
| 48,9 | 48,1 | 53,5 | 53,8 | 49,6 | 50,3 | 48,5 | 47,3 | 57,3 |

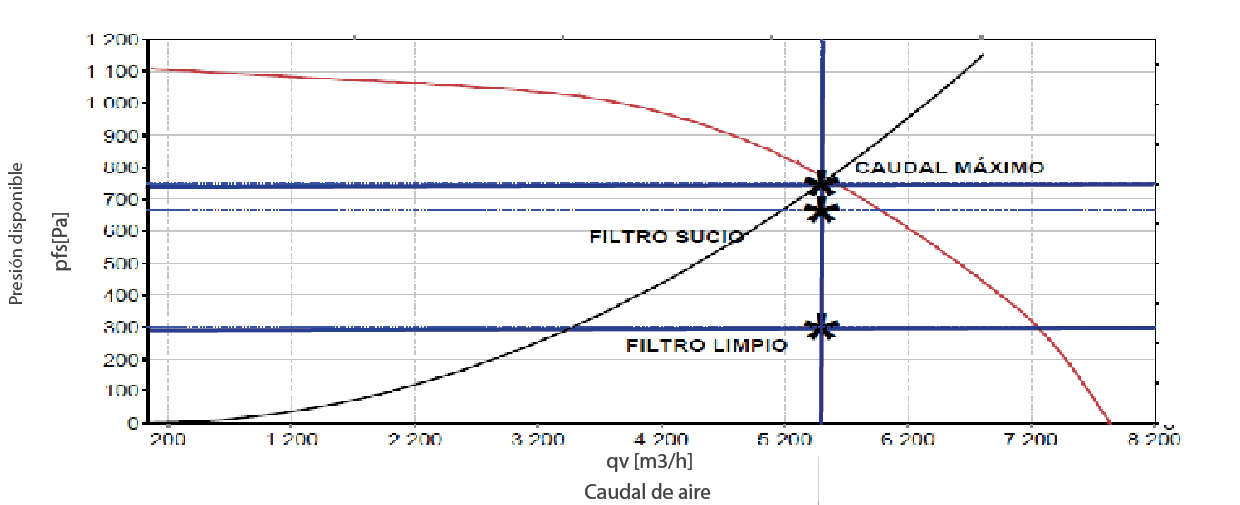

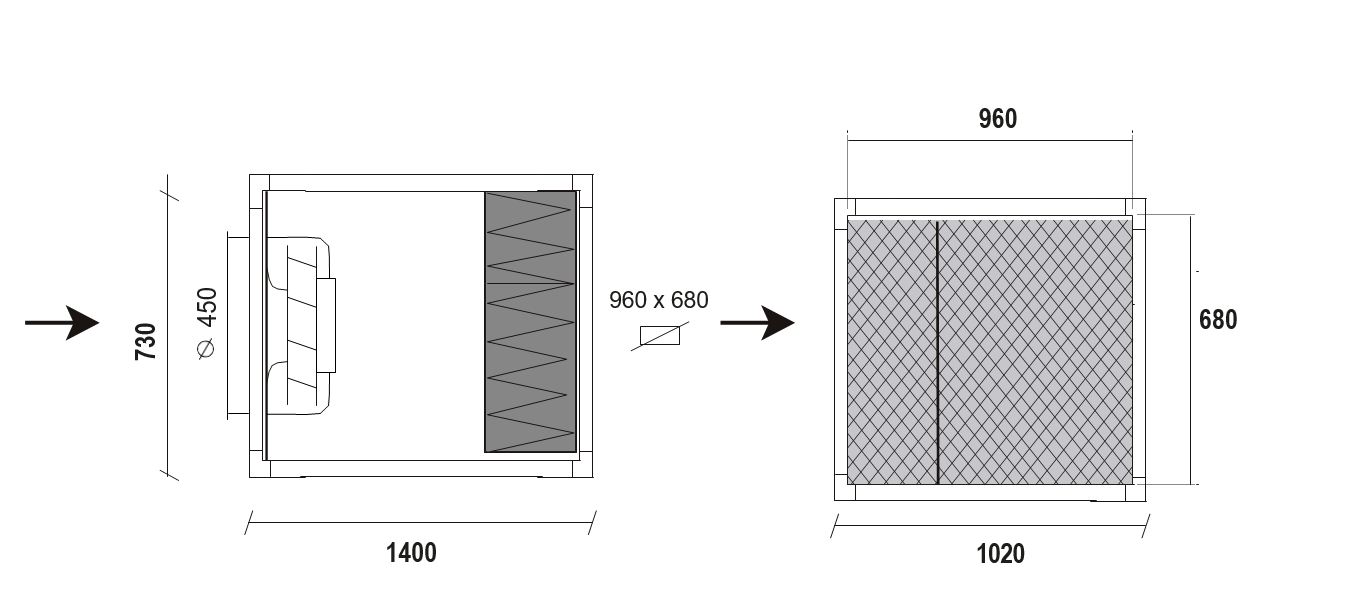

UFA-HEPA-5500
FAN
| MODEL | POWER | RPM | INTENSITY | VOLTAGE |
|---|---|---|---|---|
| K3G400 AY87 02 | 1850W | 2180 | 2,9 A | 400V/III 50/60Hz |
NOISE LEVELS
Sound pressure (LpA) at 3m in open field, in dB(A) at nominal flow rate and maximum pressure
| 63HZ | 125HZ | 250HZ | 500HZ | 1000HZ | 2000HZ | 4000HZ | 8000HZ | TOTAL |
|---|---|---|---|---|---|---|---|---|
| 48,3 | 48,3 | 59,9 | 56,1 | 53,4 | 53,9 | 49,0 | 46,6 | 60,0 |

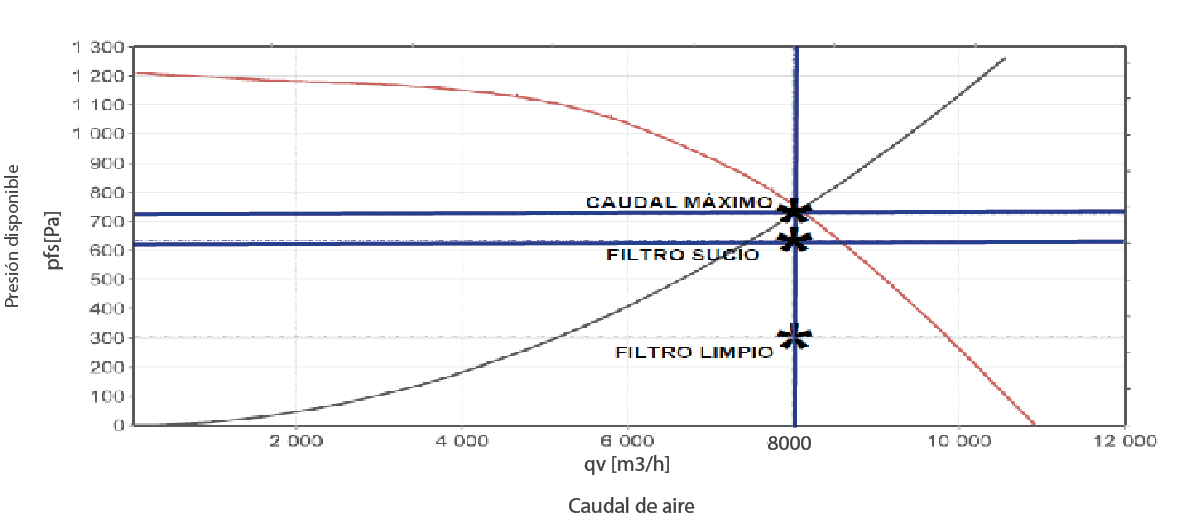

UFA-HEPA-8000
FAN
| MODEL | POWER | RPM | INTENSITY | VOLTAGE |
|---|---|---|---|---|
| K3G450 AQ24 01 | 2730W | 2040 | 4,2 A | 400V/III 50/60Hz |
NOISE LEVELS
Sound pressure (LpA) at 3m in open field, in dB(A) at nominal flow rate and maximum pressure
| 63HZ | 125HZ | 250HZ | 500HZ | 1000HZ | 2000HZ | 4000HZ | 8000HZ | TOTAL |
|---|---|---|---|---|---|---|---|---|
| 49,6 | 50,9 | 61,1 | 59,8 | 56,2 | 53,7 | 52,9 | 55,1 | 62,7 |

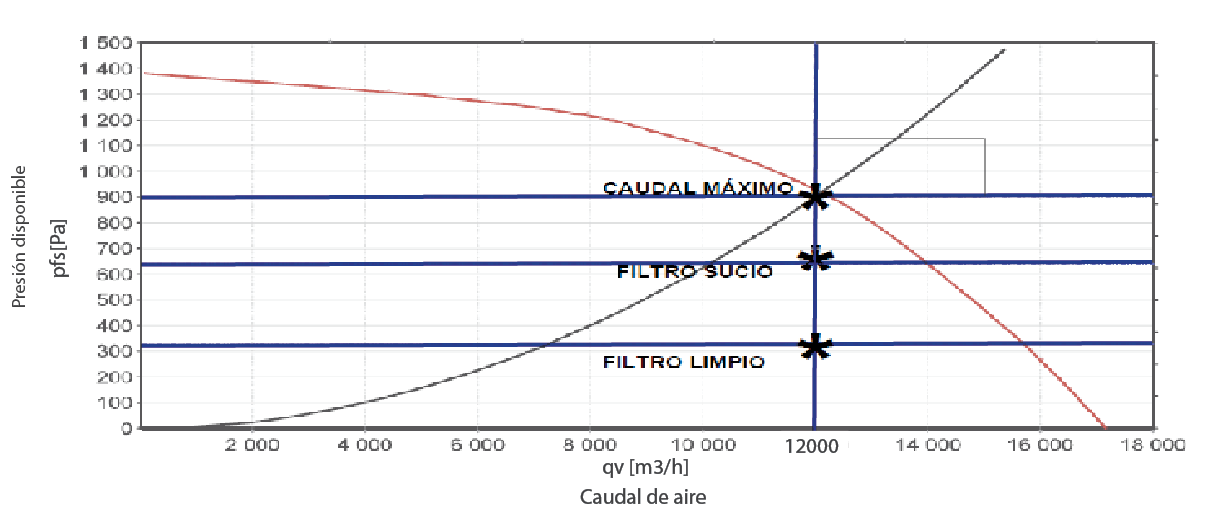

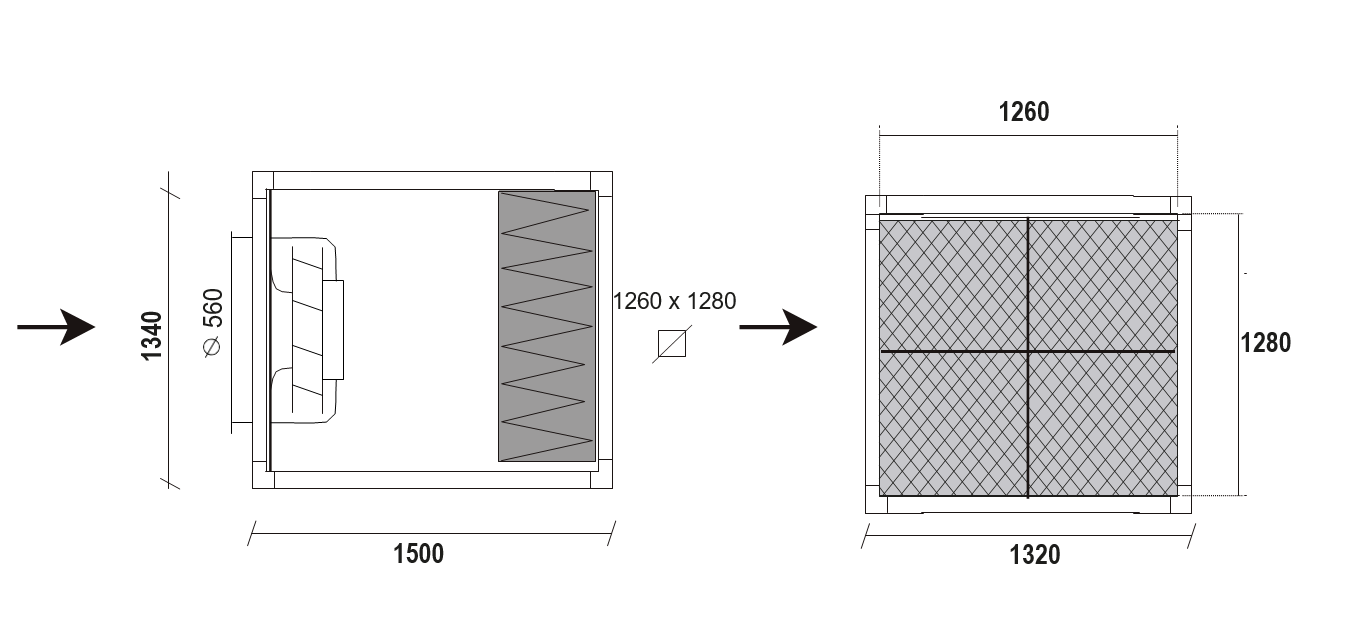

UFA-HEPA-14000
FAN
| MODEL | POWER | RPM | INTENSITY | VOLTAGE |
|---|---|---|---|---|
| K3G560 AQ04 01 | 4700W | 1750 | 7,3 A | 400V/III 50/60Hz |
NOISE LEVELS
Sound pressure (LpA) at 3m in open field, in dB(A) at nominal flow rate and maximum pressure
| 63HZ | 125HZ | 250HZ | 500HZ | 1000HZ | 2000HZ | 4000HZ | 8000HZ | TOTAL |
|---|---|---|---|---|---|---|---|---|
| 51,9 | 53,1 | 63,1 | 57,5 | 59,0 | 60,0 | 57,4 | 57,7 | 65,8
|
