Variven HT

Filtration in paint booth and paint ovens.

Technical features

Type: Compact High Efficiency filter for high temperatures.
Frame: Galvanised steel.
Media: Fibreglass paper.
Separators: Corrugated aluminium or glass fiber strips.
Sealant: Fibreglass.
Flange: Galvanised steel.
Gasket: Fibreglass with an outer coating.
Average Efficiency or Dust Spot: 60 Em 80%, 80 Em 90% y 90 Em 95%.
Class EN 779: M6 and F8.
ISO 16890: ePM10 65% and ePM1 65%.
Recommended Final Pressure Drop: 450 Pa.
Temperature: Maximum operational temp: 250ºC, max peaks temp: 350ºC

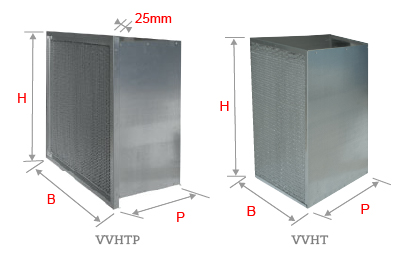

VVHTP: With a flange.
VVHT: Without flange.

Advantages

– Silicone Free.

Category

High Temperature Filters

Certificates

Graphic

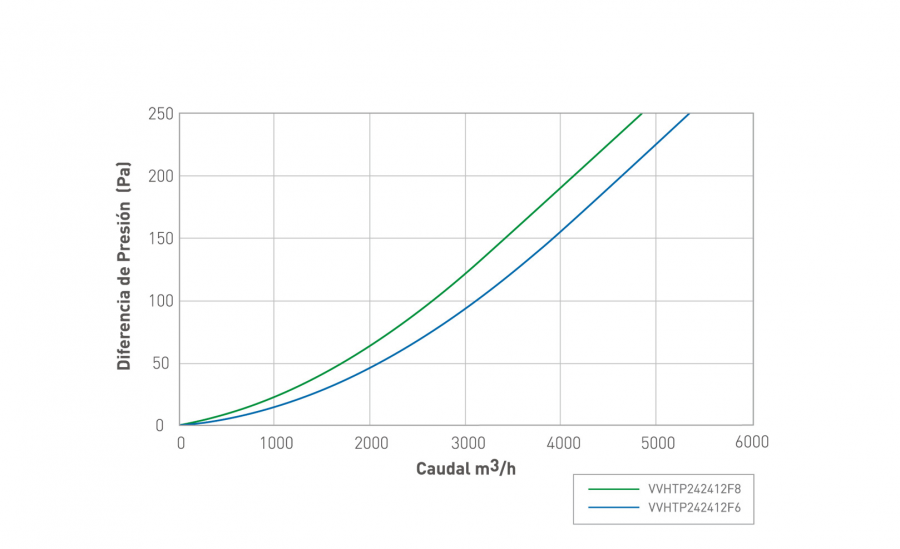

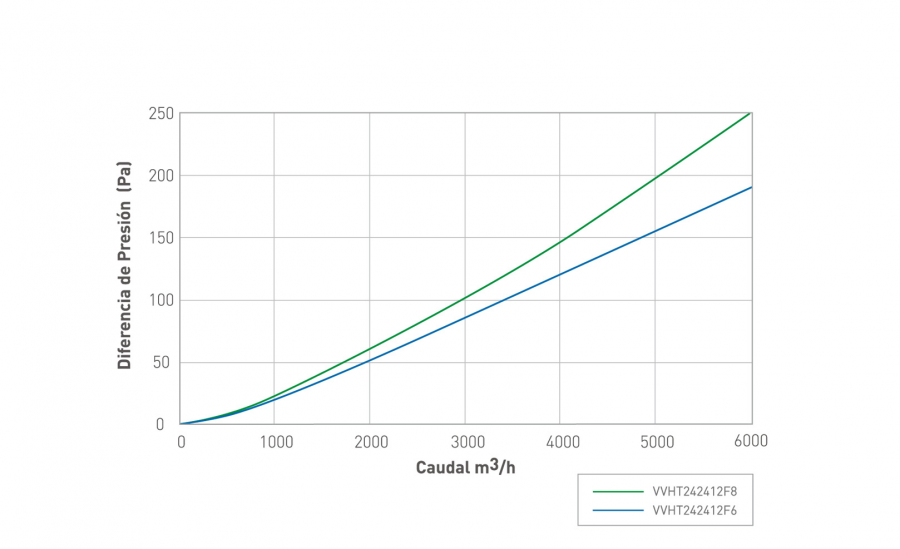

FUNCTION OF PRESSURE DROP VS. FLOW RATE

Variven HT

References

*UxP: Units per box

*Stock F: Manufacture, S: Stock, SL: Limited Stock
*ME %: Minimum Efficiency EN779:2012
** Energy Consumption kWh/year: Calculated according to Eurovent guidelines 4/21-2017
*** Energy Consumption kWh/year: Calculated according to Eurovent guidelines
**** Energy Class according to Eurovent
