Glass Fibre Bag Filters

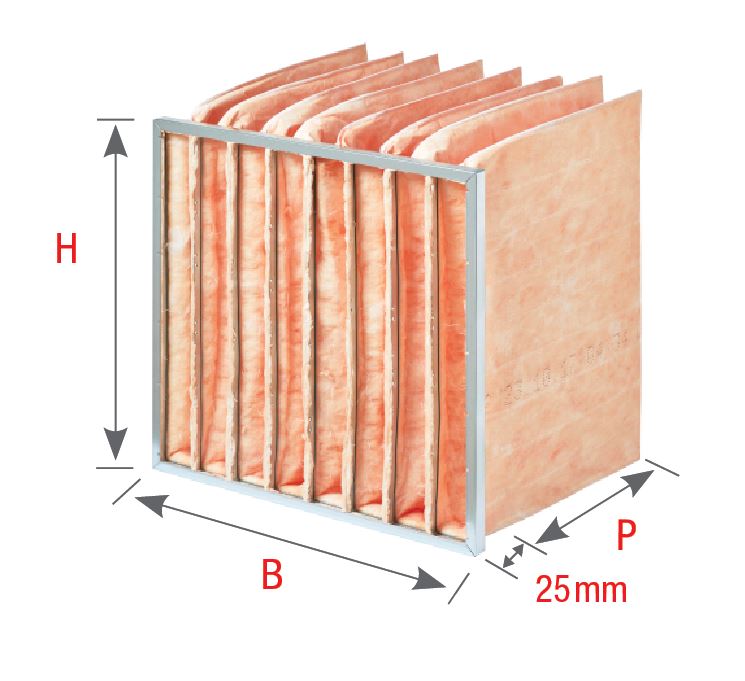

Bag-glass 60 (Galvanized)

BAG-GLASS filters are made of fiber glass bags. The combination of fine and coarse woven glass fibers guarantees a low initial pressure drop and an excellent dust-collecting capacity in HVAC systems such as: Air conditioning units (ventilation chambers, etc.), air conditioning systems (office buildings, call centers, department stores, hospitals, museums and airports), industrial processes, (pharmaceutical, food, optical industries, etc.) and as a pre-filter for Hepa and Ulpa Filters.

Technical features

Type: High-efficiency bag filter.
Frame: Galvanized Steel.
Media: Fiberglass fabric.
Bags: Conical shape.
Average Efficiency % (Em): 60 ≤ Em < 80%.
EN 779 Class: M6.
ISO 16890: ePM2.5 55%
Recommended Final Pressure Drop: 300 Pa.
Temperature: 90ºC.

Advantages

– Conical Shape.
– Available in ATEX.

Category

Air treatment

Certificates

Graphic

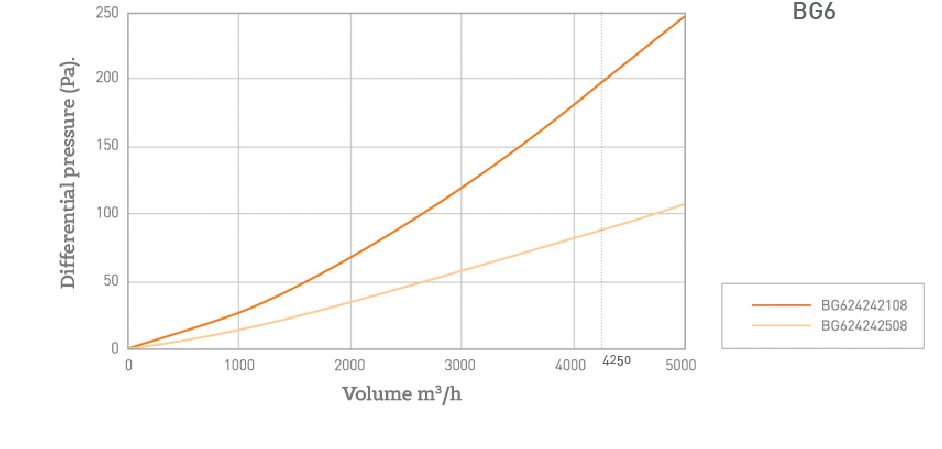

FUNCTION OF PRESSURE DROP VS. FLOW RATE

Bag-glass 60 (Galvanized)
