Glass Fibre Bag Filters

Bag-glass 90 (Galvanized)

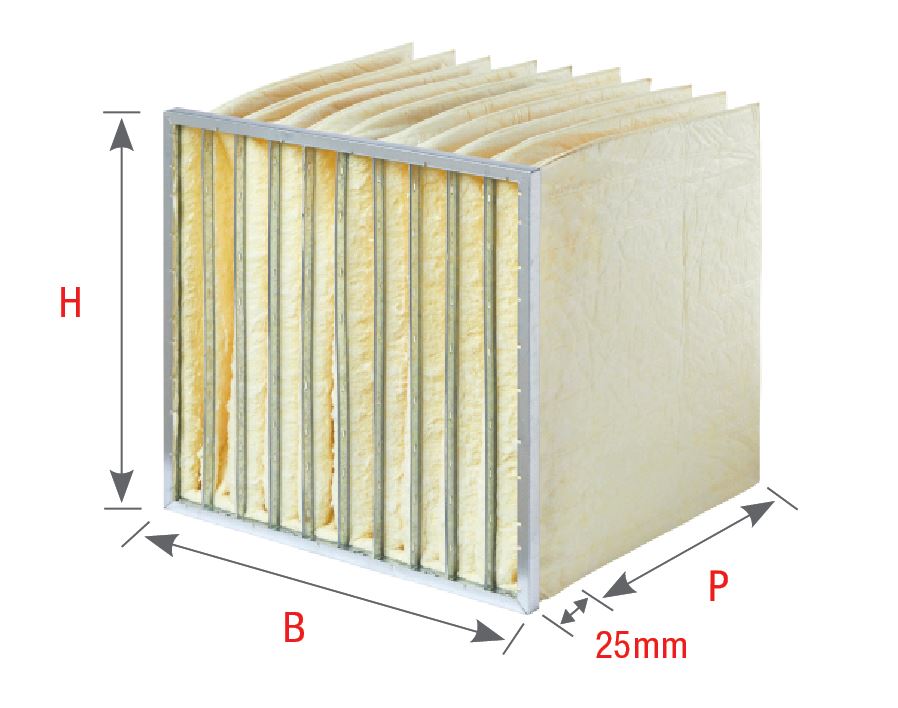

BAG-GLASS filters are made of fiber glass bags. The combination of fine and coarse woven glass fibers guarantees a low initial pressure drop and an excellent dust-collecting capacity in HVAC systems such as: Air conditioning units (ventilation chambers, etc.), air conditioning systems (office buildings, call centers, department stores, hospitals, museums and airports), industrial processes (pharmaceutical, food, optical industries, etc.) and as a pre-filter for Hepa and Ulpa Filters.

Technical features

Type: High-efficiency bag filter.
Frame: Galvanized Steel.
Media: Fiberglass fabric.
Bags: Conical shape.
Average Efficiency % (Em): 90% ≤ Em < 95% and 96% < Em
EN 779 Class: F8 and F9.
ISO 16890: ePM1 80%, ePM1 85%
Recommended Final Pressure Drop: 300 Pa.
Temperature: 90ºC.

Advantages

– Conical Shape.
– Available in ATEX.

Category

Air treatment

Certificates

Graphic

FUNCTION OF PRESSURE DROP VS. FLOW RATE

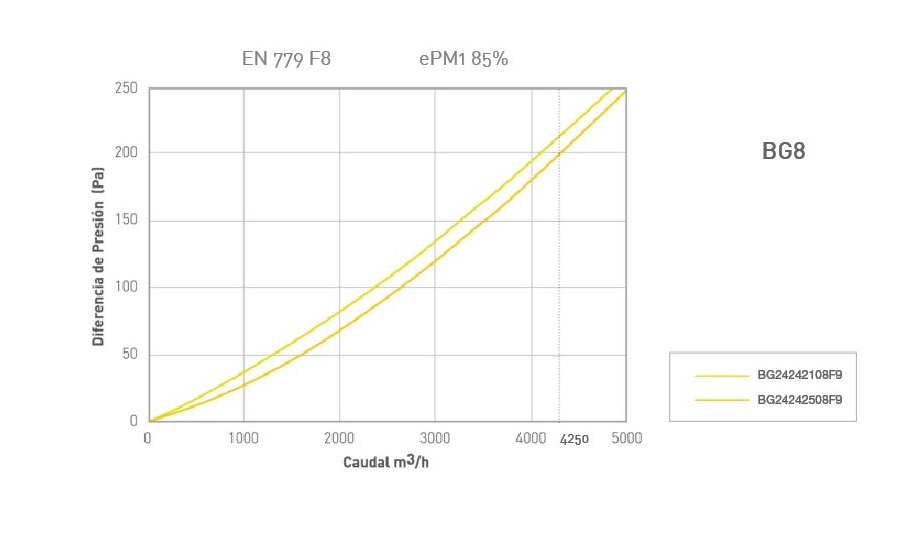

BG8

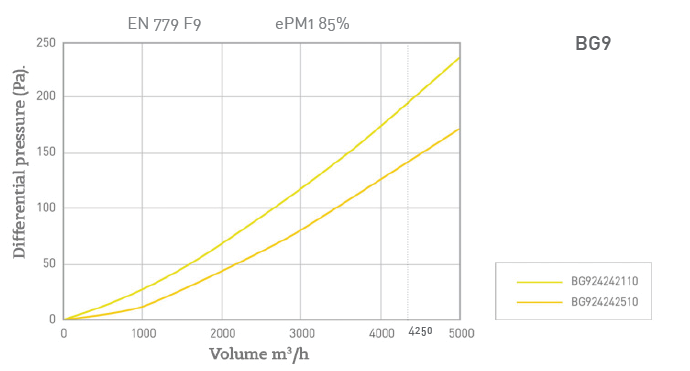

BG9

Bag-glass 90 (Galvanized)

References

* Energy Consumption kWh / year: Calculated according to Eurovent 4 / 21-2017 guidelines.
** Energy Consumption kWh / year: Calculated according to Eurovent guidelines.
**** Energy class according to Eurovent.

*UxP: Units per box
*Stock: F: Manufacture, S: Stock, SL: Limited Stock
