Terminal filter hood with regulation
Terminal filter hood with regulation for terminal filtration or air return in clean rooms.
Hepa compact filters
Technical features
Type: HEPA/ULPA laminar flow Diffuser-Filter H14.

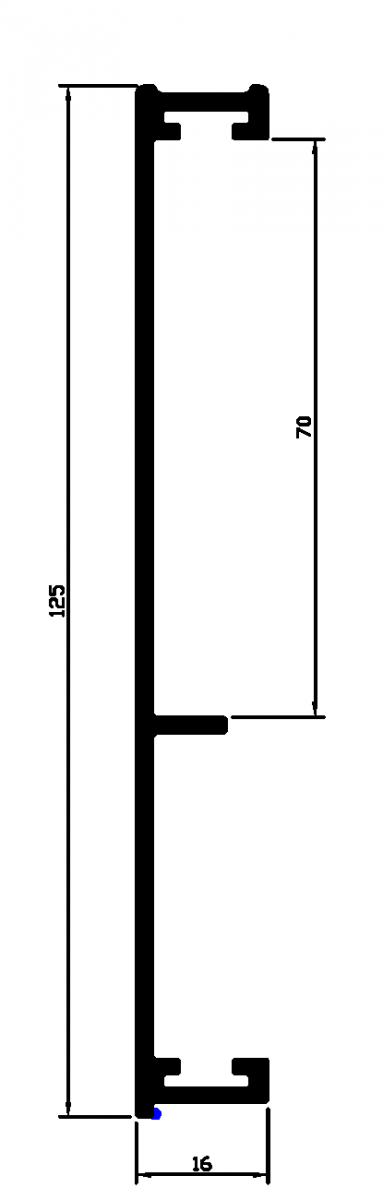

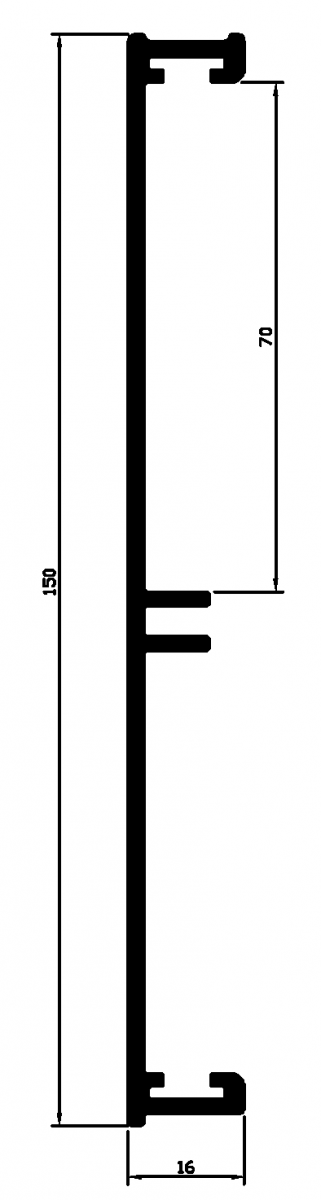

Frame: Extruded and anodized aluminium profile.
Filtering Element: Glass microfiber paper.
Separators: Thermoplastic glue beads.
Sealant: Polyurethane.
Protective grid: Steel grid at the air outlet; white epoxy painted.
Gasket: Bicomponent polyurethane liquid system. (Semi-circular expanded polyurethane).
Collar: Ext. collar 200, 250 and 315 mm. (according to model).
MPPS Efficiency: 99.995% and 99.9995%
Class EN 1822: H14 and U15.
Recommended Final Pressure Loss: 600 Pa.
Temperature: 80ºC in continuous service.
Advantages
– Low weight, reduced depth mono-block filtering.
– These filters are assembled and installed with a one-piece semicircular polyurethane seal at the air outlet
in order, to prevent particle migration or leakage between the filter and the racks or the frames of the installation structure.
– Flow-regulation system and test for measurement of pressure drop and room contamination level.
– A diffuser plate can be adjusted in order to distribute the air in the plenum evenly over
the filter surface.
Category
Absolute Filtration / Clean RoomsClass: H and UCertificates
Terminal filter hood with regulation
References
*UxP: Units per box *Stock
*F: Manufacture, S: Stock, SL: Limited Stock
