High-capacity EPA filters

Poliven EPA (Plastic)

Poliven EPA (Plastic) is a high-efficiency semi-absolute filter with a plastic frame, designed for intake, exhaust and recirculation air filtration in high-safety ventilation systems.

It is used in cleanrooms, operating rooms and laboratories, where a high level of particle control is required. It is also suitable for demanding industrial processes, such as the microelectronics, food, optical, pharmaceutical and fine chemical industries.

Poliven EPA (Plastic) enables the treatment of hazardous substances, such as asbestos, metallurgical dust, bacteria, viruses and radioactive particles, ensuring effective contamination control.

Technical features

Type: Compact Multihedral Absolute Filter with Very High Efficiency and Large Flow.
Frame: Polyethylene with forming for extraction.
Filtering Element: Glass microfiber paper.
Separators: Thermoplastic glue beads.
Sealant: Polyurethane.
Gasket: Bicomponent polyurethane liquid system.
(Semi-circular expanded polyurethane)
MPPS efficiency: 85%
EN 1822 Class: E10
Recommended Final Pressure Loss: 600 Pa.
Temperature: 80ºC in continuous service.

Advantages

  • Rigid polyethylene construction facilitating the installation and replacement of the filter; all the components are Anticorrosive and incinerable (they do not give off toxic gas when burned in the incineration process at municipal waste facilities).
  • IN NEW INSTALLATIONS fewer filters are required to filter the same volume of air, compared with HEPA filters of the same size.
  • High rated flow for a low-pressure loss.
  • Lower energy consumption.
  • Filters totally interchangeable with the aluminium separator filters and Minipleat filters.
  • Suitable food industry.
  • Also available in HEPA version (H13 / H14). See it by clicking here: Poliven HEPA (Plastic)

Category

Absolute Filtration / Clean RoomsClass: E

Certificates

Graphic

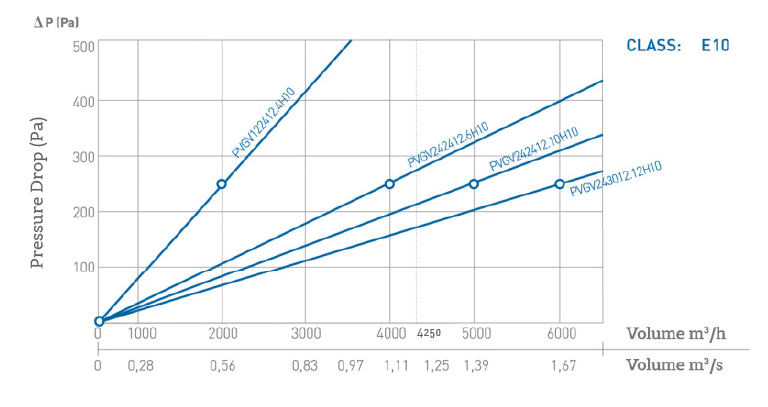

FUNCTION OF PRESSURE DROP VS. FLOW RATE

Poliven EPA (Plastic)

References

*UxP: Units per box

*Stock F: Manufacture, S: Stock, SL: Limited Stock
